Description

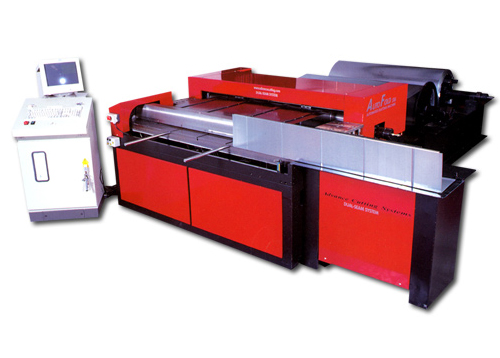

AF Side Eject Expandable

The base AutoFold – 516 (SEE) can produce the following:
Flat cut to length blanks with or without beads
Flat cut to length duct with notches (1,2,3 or 4 piece)
“L” Sections with or without notches
“U” Sections with or without notches
Fully Wrapped Duct Sections with or without notches
Male Pittsburgh

Standard Features
1ea 2 in 1 “i” Beam Coil Holder
Coil Range 19″ ID to 27″ ID
Adjustable Leveler
2ea Adjustable “V” Notchers for S & D and TDF/C
5′ 16ga Capacity Shear
2ea 10,000lb Capacity Coil Mandrelsdependable operation
Adjustable Beader (Maximum 18ga Capacity)
2ea Adjustable Corner Notchers for S & D and TDF/C
5′ 16ga Capacity Folder
CNC Controller with USB Port and Color LCD Screen
Material Jam Detector

Options
Tie Rod Punching – More information –
Power Coil Drive (CDA) – More information –
4 Coil Selector Station – More information –
Dual Head Drive Cleat Roll Former – More information –
Automatic Female Side Eject Pittsburgh & Snaplock Rollformer – More information –
Gague Counter
Additional Coils
Addition of down stream TDF/C see Autofold SEE Ductmaker
Automatic Change over between Female Pittsburgh and Snaplock
Down Load from Plasma Cutting Software
Additional 2 in 1 “I” Beam Coil Holders
