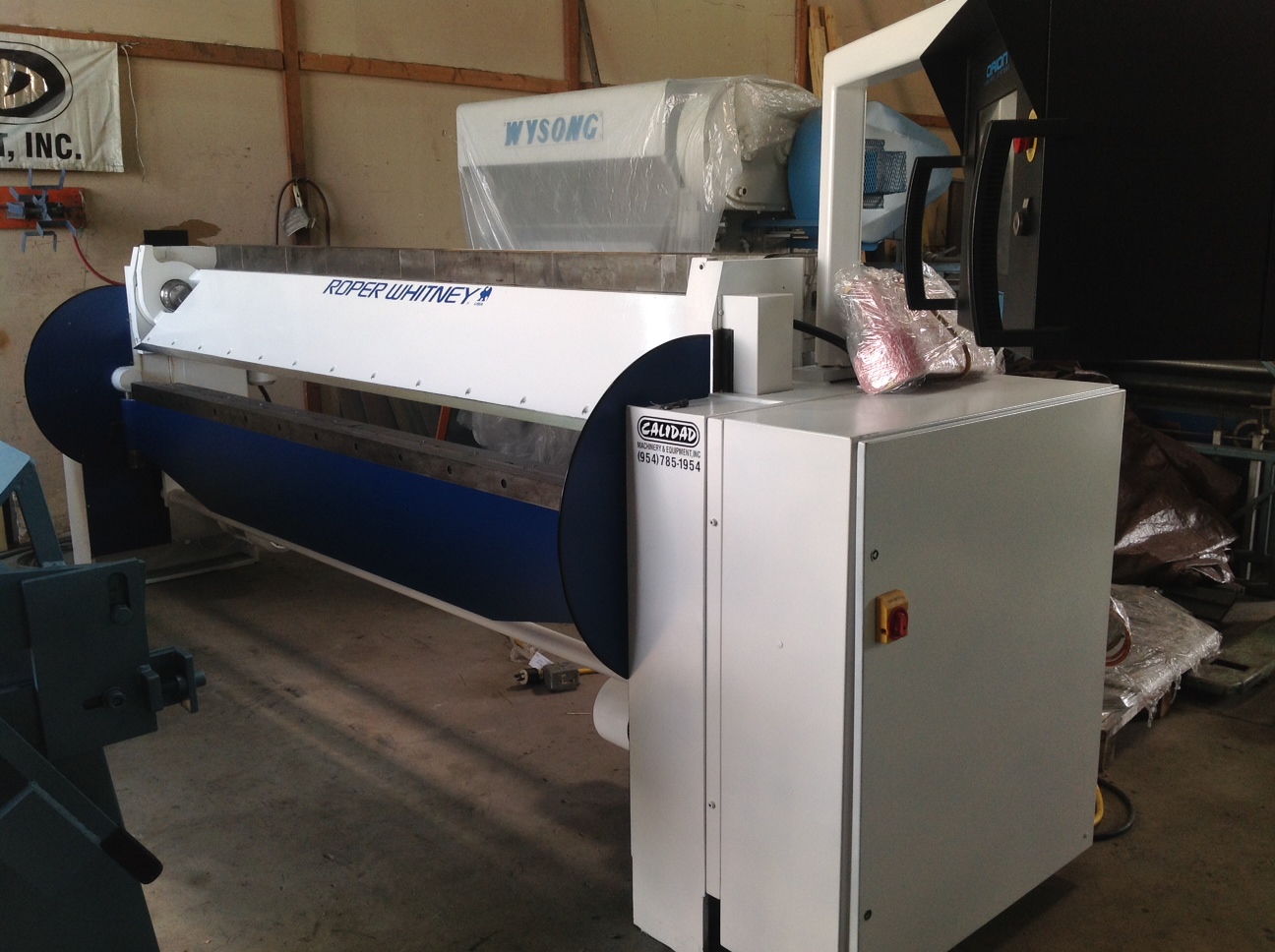

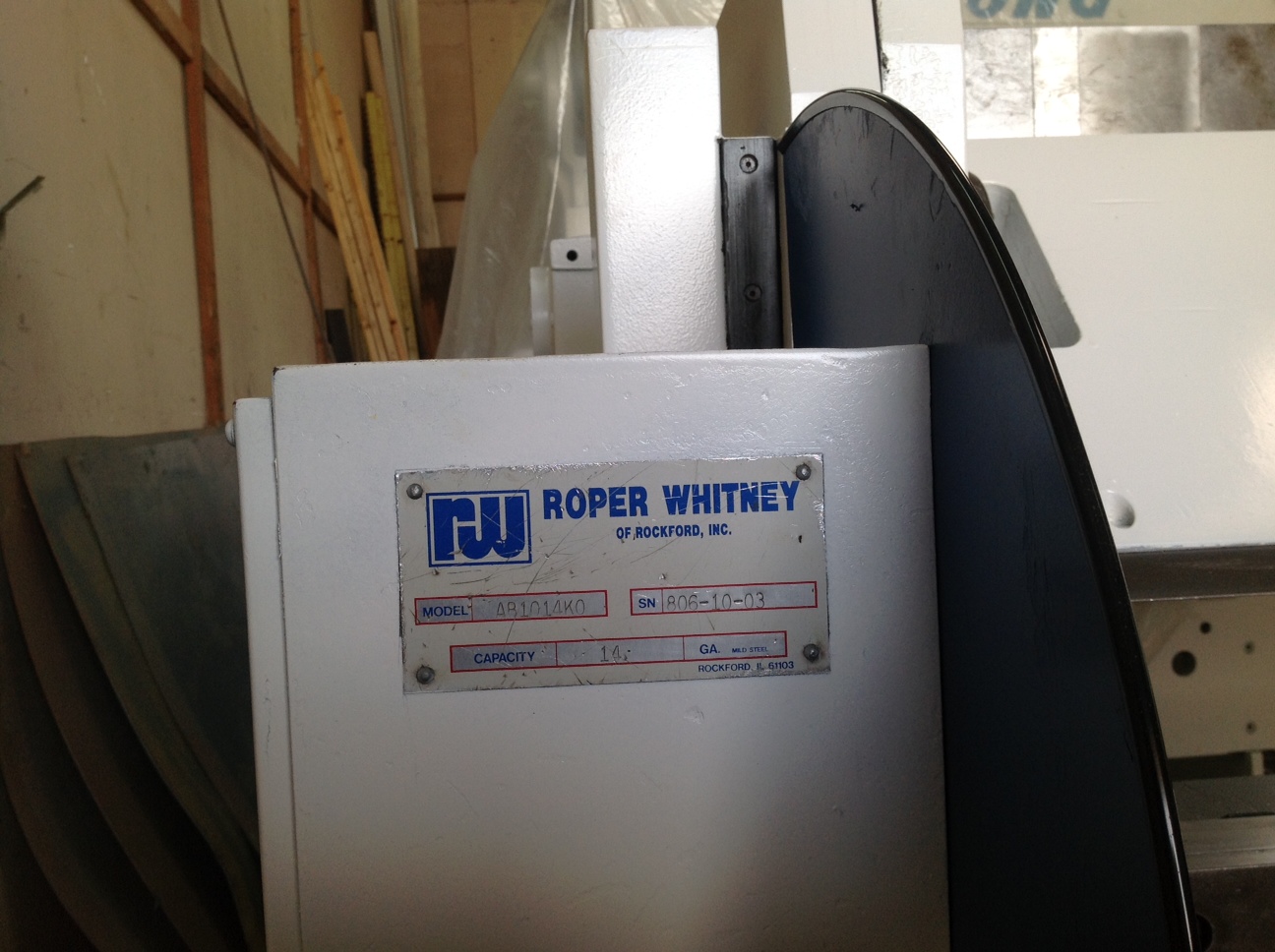

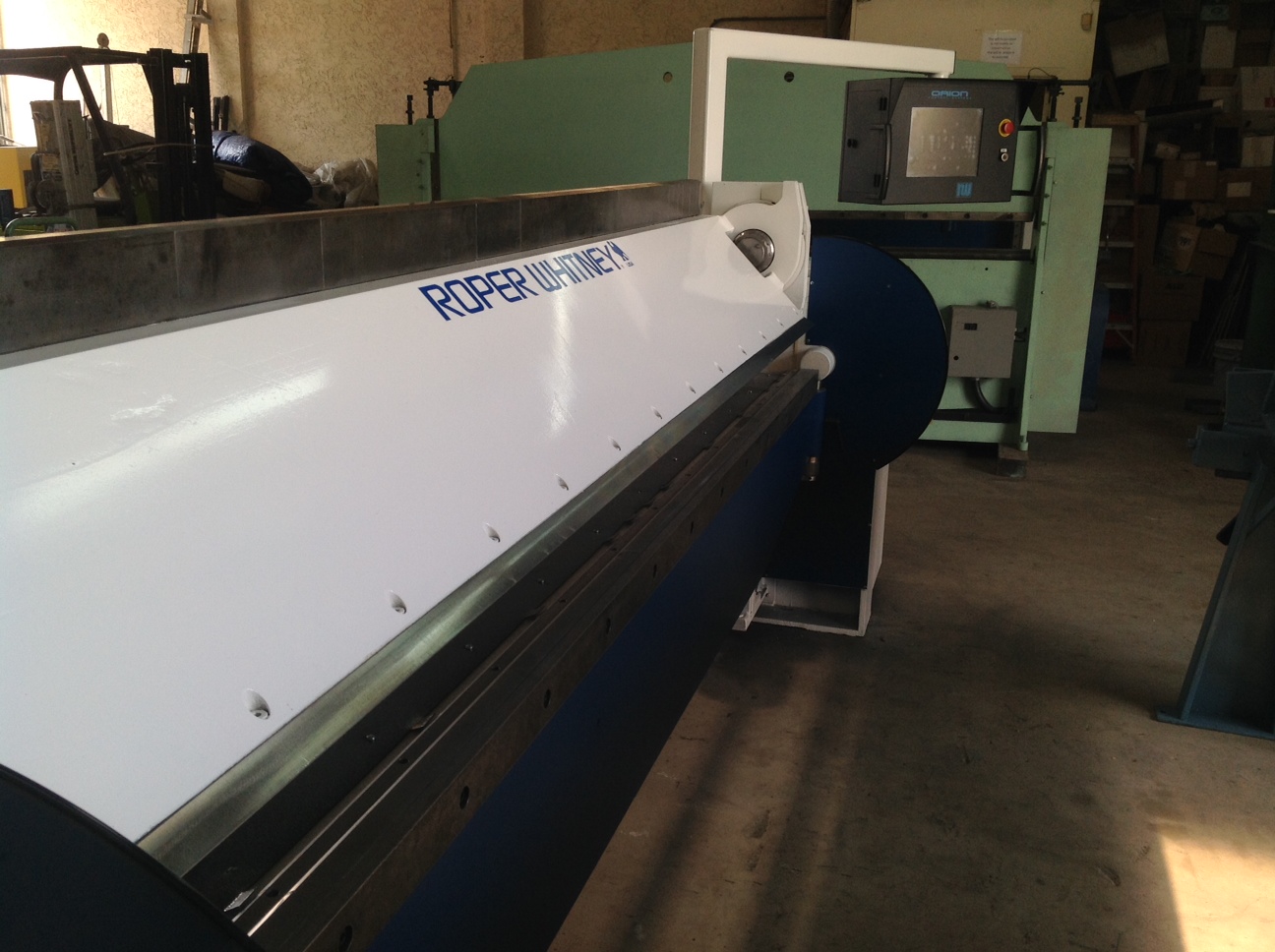

Pre-owned Roper Whitney AB1014KO (SOLD)

Categories: ,

Inquiry Form

Description

SOLD

U.S. Standard    Metric
Maximum Bending Length                         122”                   3100mm
Rated Bending Capacity Mild Steel           14 gauge           2mm
Back- gauge Weight Capacity                     700lbs.              318kg
Back-gauge Travel                                             61”                  1550mm
Working height                                                  35”                  889mm
Open height                                                        5.3”                 135mm
Bending beam adjustment                              2.0”                 50mm
Electrical 230/3/60

Motors:
Kombi Beam ¾ HP .55 kw
Clamping Beam 2 HP 1.5 kw
Bending Beam 2 HP 105 kw
System weight: 7,930lbs. 3,604 kg

Electrical:
Voltage required 230/3/60
Maximum current draw 7 amps
Service required 20 amps
Wire gauge required for incoming power 12 gauge
