Description

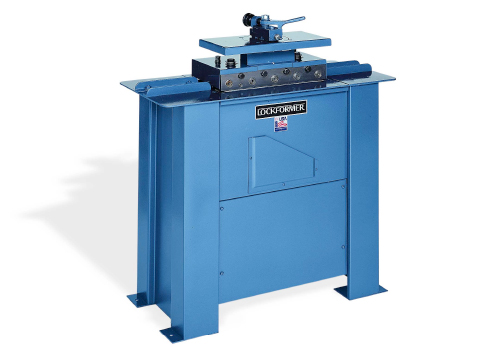

LOCKFORMER PITTSBURGH MODEL 20 with ACME Double Seam Rolls- Stock #UL377
| Capacity |
20-26 gauge |
20-26 gauge |
22-26 gauge |
24-28 gauge |
| Depth of pocketHammer over-Edge adjustability |
5/16” 3/8” |
5/16” 3/8” |
5/16” 3/8” |
5/16” 3/8” |
| Forming speed |
75 fpm |
25 fpm |
25 fpm |
30-35 fpm |
| Drive |
Matched double V-Belt |
V-Belt |
V-Belt |
V-Belt |
| Motor |
2 hp. 1800 rpm |
3/4 hp. 1800 rpm |
1/2 hp. 1800 rpm |
1/3 hp. 1800 rpm |
| Volts |
230/460 |
115/230 |
115/230 |
115/230 |
| Phases |
3 |
1 |
1 |
1 |
| Dimension(l x w x h) |
48” x 24” x 41” |
36” x 16-1/2” x 36”-1/2” |
36” x 16-1/2” x 36-1/2” |
30” x 13-1/2” x 14” |
| Ship weight | Approx 400 lbs. | Approx. 290 lbs | Approx. 290 lbs | Approx. 140 lbs. |
