Description

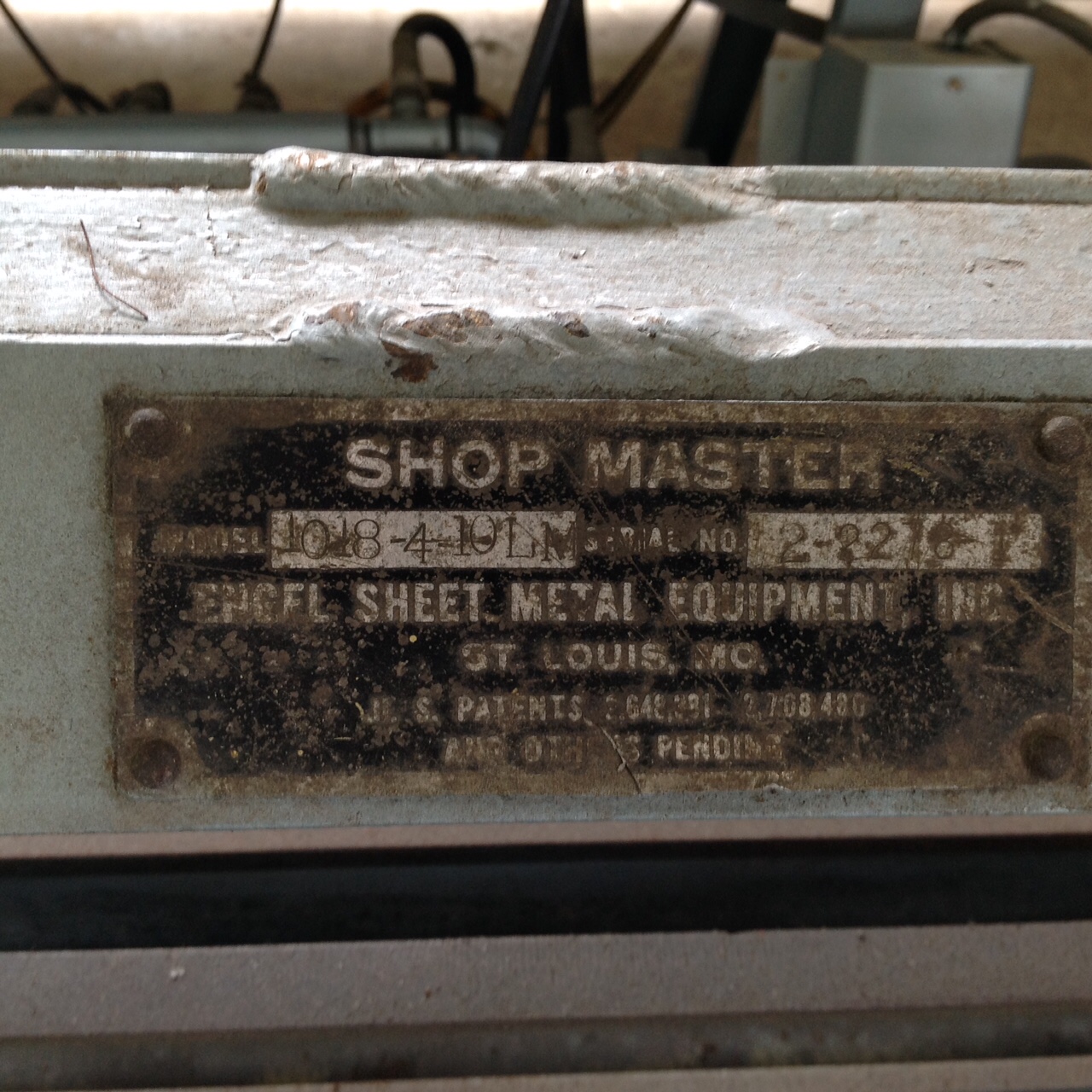

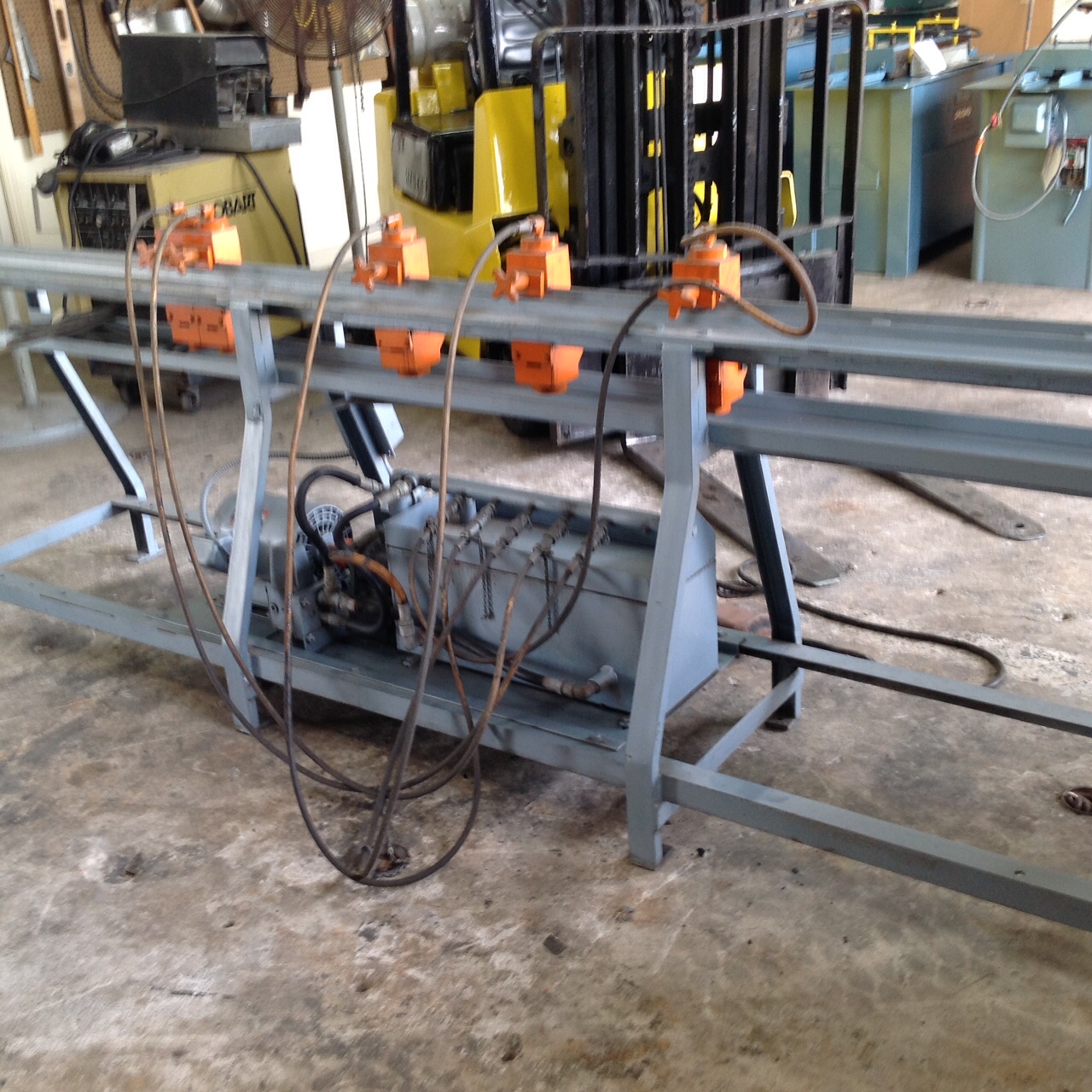

Model 1018-4-10LM 10ft 18ga Speed Notcher – Stock #UE357

Maximum capacity                 18 gauge mild steel or equivalent
Working height                      31 in.
Motor characteristics             1 HP, 110/220V, single phase, 60Hz or 200/240/460/3/60Hz,  three phase
Slug bed clearance                 2-1/2 in.
Notching depth range                        0 in. to 1-1/4 in or o in. to 1-1/2 in.
“V” type notcher dies            Three “V” type standard 30 degree angle
“Lock” type notcher dies       Two as standard, optional width dimension:  15/16 in., 1-1/8 in. or 1-3/8.
Notching pattern                   10’
Required floor space             137 in. x 33 in.
Approx shipping weight        1365 lbs.
