Description

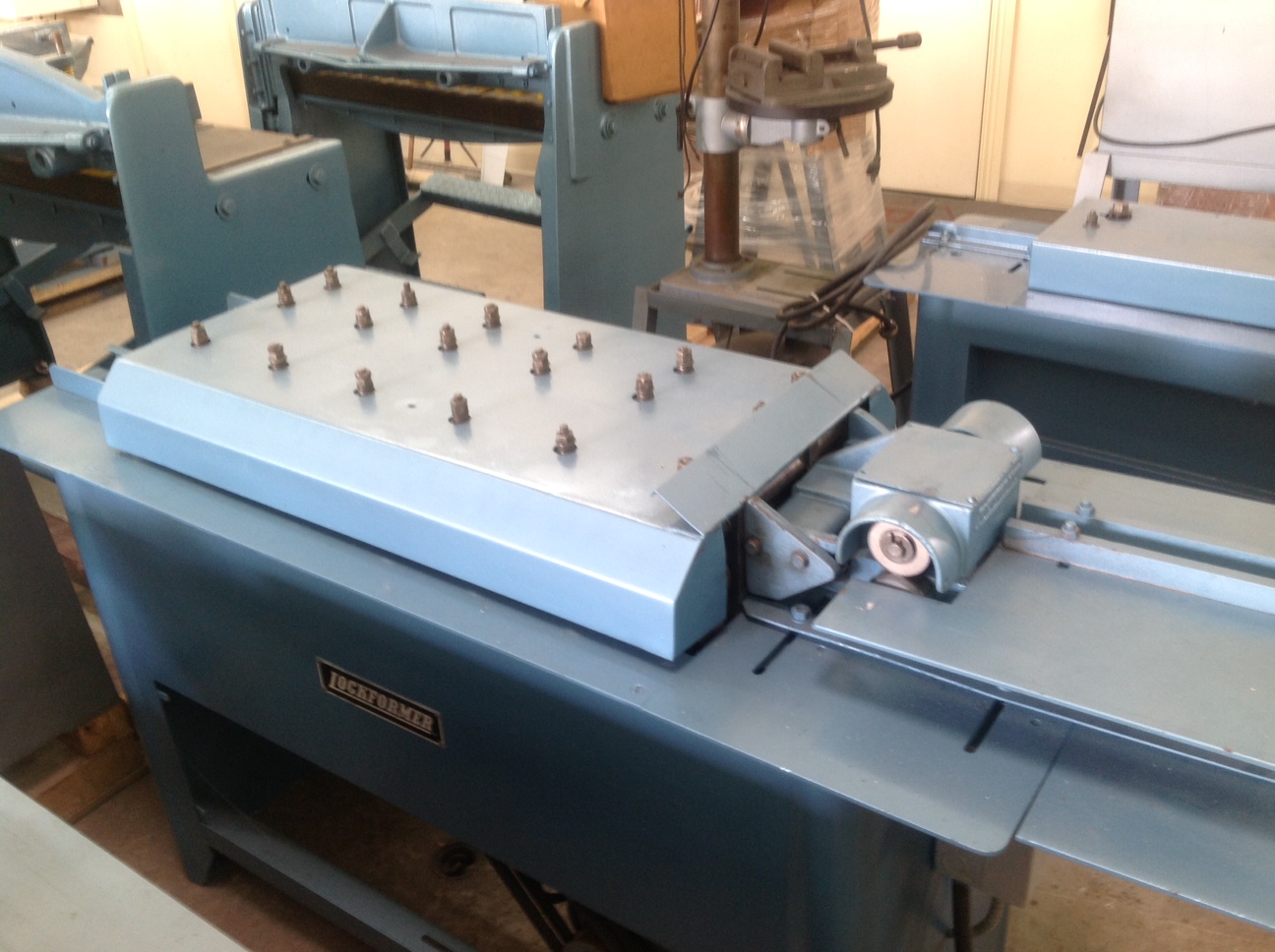

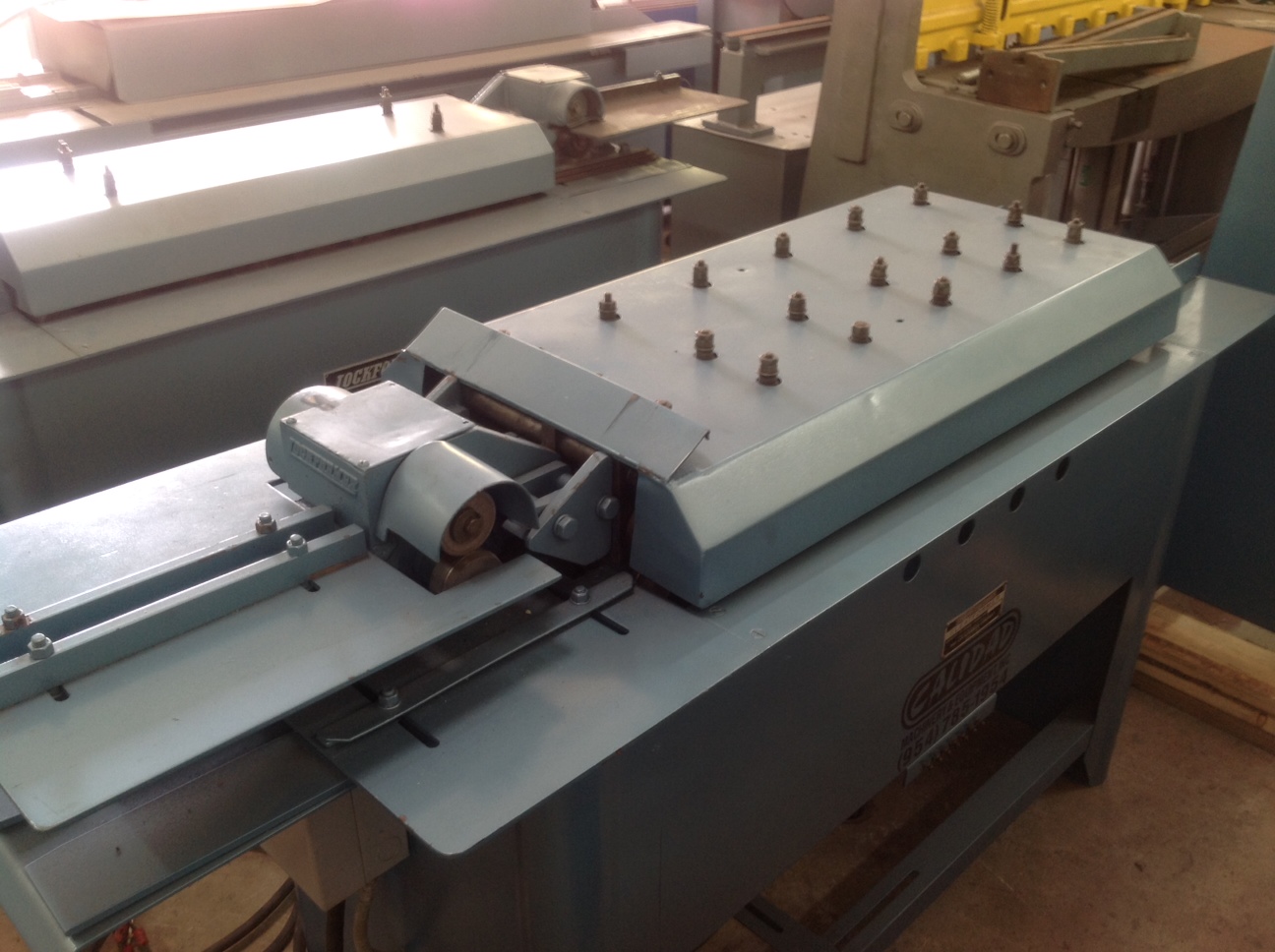

Lockformer Triplex Cleatformer with “S” Cleat and Drive Cleat, complete with the following specifications:
(Stock #UL443 – S/N: TR1 4362)

Capacity:                     22 to 28 gauge for “S” cleat operation. 20 to 28 for Drive Cleat Operation
Width of “S” Cleat:     1-1/16”
Width of Drive Cleat:  1-1/8”
Drive Cleat Inboard:   20/26 Ga.
“S” Cleat Inboard:       22/28 Ga.
Speed:                         Average 100 FPM
Motor:                         5 H.P. x 1800 RPM motor arranged for operation 230/460 volt, 3 phase, 60 cycle current characteristic. Manual switch.
Dimensions:                24” wide, 60” long, 40” high.
Total Height:               32-1/2”
Shipping weight:         Approximately 850 lbs.
