Description

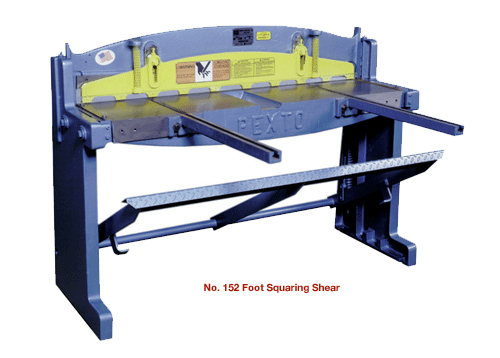

Shear – Pexto No.152

PEXTO foot squaring shears are the industry’s most accurate. They are easy to operate and offer precise shearing, long life and dependability. Shatter-proof transparent finger guards are among their safety features. All are provided with precise gauging and hold-downs for cutting accuracy.

• Maximum Rated Capacity :16 gauge mild steel
• Built to machine tool standards
• Triple-action shearing

No. 152 shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. It eliminates blade-to-blade friction, provides “bite” to eliminate sheet movement under shearing stress and produces double penetration in the cutting action. This contributes to easier operation. The No. 152 will handle a 52″ sheet.

Specifications

Maximum shearing capacity, mild steel: 16 ga. / 1,6mm
Maximum shearing capacity, stainless steel: 20 ga. / 1,0mm
Maximum cutting length: 52in. / 1320mm
Back gauge range: 30 in. / 762mm
Front gauge range: 37in. / 940mm
Floor space, gauges in position: 60x76x42in. 1524x1930x1070mm
Shipping Weight: 1000lbs. / 455kg
