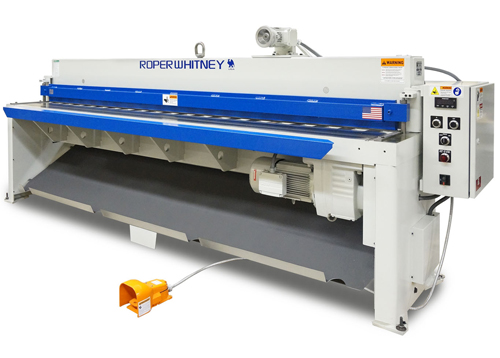

Shear – Roper Whitney 10M14
Roper Whitney mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.
The 10M14 capacity is 14-gauge mild steel, 18-gauge stainless up to 121.25 inches in cutting length
The electro-mechanical design of the M series provides quiet operation with low power consumption. The shear is initiated by a moveable footswitch. An oversized shield and toe kick plate are incorporated into the footswitch for added operator safety. The shears are capable of 35 cutting strokes per minute. For increased speeds please consult factory.
The M Series come standard with a DRO power back gauge consisting of a mechanical stop, twin drive screws, gear motor, digital readout, and rotary encoder. The mechanical back gauge stop is supported by twin drive screws. The system is chain driven by the gear motor, and is monitored by a rotary encoder. Motion for the back gauge is initiated at the control panel by depressing the appropriate pushbutton for forward or reverse. Final adjustments to the back gauge position are made using the hand wheel, attached at the front of the gear motor. The position of the back gauge is displayed on the digital readout, located on the electrical enclosure. The digital readout increments are 0.001”. The system is protected by over travel limit switches located at the front and rear of the back gauge travel.
The 10M14 Series shears are standard with an two edge interchangeable top and bottom, high carbon, high chrome top and bottom blades , independent, self-leveling hold down with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, with dual inch/metric inlaid bed scales and non-metallic gibs.
Non-metallic self-lubricating ram gibs ensure long life for the 10M14. Maintenance free self-lubricating bearings are standard.
Benefits of the M series power shears are:
- Low power consumption
- Quiet operation
- Superior quality of cut
- Fast highly accurate power back gauge
Manufacturing, service, and parts support for the M series shear is based in Rockford, IL.
Maximum Shearing Capacity, Mild Stee Mild Steel Rated Materials at 80,000 Tensile / 44,000 Yield: 14 gauge / 2,0mm
Maximum Shearing Capacity, Stainless Steel Stainless Shear Rated Materials at 90,000 Tensile / 55,000 Yield: 18 gauge / 1,25mm
Maximum Cutting Length: 78.5 in / 1994mm
Back gauge Range 30in. / 762mm
Strokes per Minute: 35
Hold down System: Solid Bar with Non-Marring Urethane Insert
Drive Motor-230/460v, 3-phase, 60Hz: 5hp
Back gauge Motor-230/460v, 3-phase, 60Hz: ¼ hp
Overall Dimensions, Less Gauges, LxWxH: 141 x 27 x 52 in
Floor Space, Gauges in Position: 141 x 64 x 52 in
Shipping Weight: 5,500 lbs. / 2500kg
