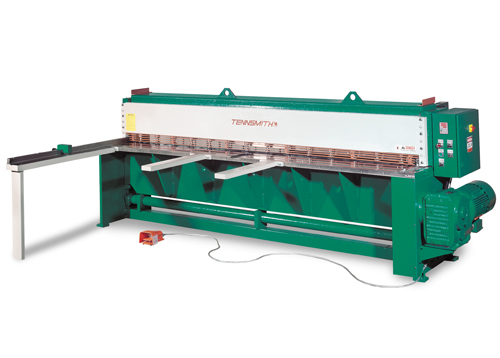

Shear – Tennsmith’s LM1010

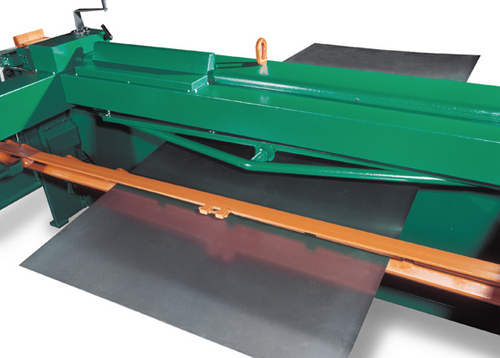

Tennsmith’s LM1010 is equipped with a standard “Go-To” 30-inch back gauge system. The ball screw-driven back gauge provides quick, accurate cuts. The operator simply inputs a dimension, and then presses enter, and the gauge automatically positions to that number. Please call for more details. The LM1010 is also available with the unique 2x back gauge system (LM1010-2x). This allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. An optional digital readout is available for this system.
The LM Series shears are standard with four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
The rated capacity of the LM1010 is 10-gauge mild steel, 14-gauge stainless up to 121 inches in cutting length.
To enhance productivity, optional equipment available for the machine includes: five or ten-foot squaring arm, front support arms, light beam and protractor attachments. Please contact for a complete listing of optional equipment. The LM1010 also have available an air operated sheet support system. This system is available as Rear Return Only: System R drops the support material to the rear of the machine. Please call for details.
The LM series shears are available in a reduced price “Performance Package” configuration. The Performance Package includes: a five foot squaring arm, a pair of front support arms, and air operated sheet support system. Performance “R” system is for rear return.

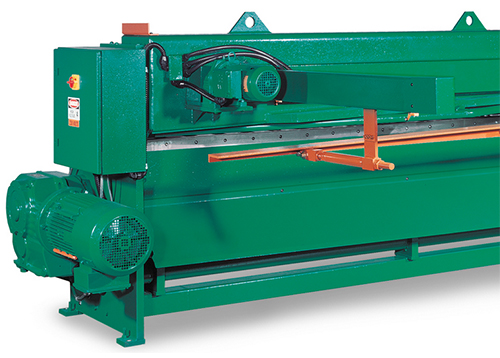

Standard features for the LM1010 control box include: selection for continuous or single cutting stroke, and jog button with reverse switch. A “GO TO” back gauge control pad with stroke counter allows quick, accurate back gauge positioning up to 30 inches.
Maximum shearing capacity, mild steel :10 gauge / 3.5 mm
Maximum shearing capacity, stainless steel: 14 guage / 2.0 mm
Maximum cutting length: 121 in./3073 m
Back guage range: 30 in./762 mm “Go-To”
Strokes per minute, full length: 35
Number of holddown feet: 16
Motor-230/460v, 3-phase, 60Hz: 12.5 hp
Dimensions, less gauges, LxWxH: 145 x 39 x 60 in. 3683 x 991 x 1511 mm
Floor space, gauges in position: 145 x 78 x 60 in. 3683 x 1981 x 1524 mm
Shipping weight: 9,400 lbs./4272 kg
